INTELLISCAN-IBRL1010PSB

DIMENSIONING WEIGHING & SCANNING (DWS) SOLUTION

  • Barcode, Volumetric (L*B*H) & Physical weight - All in one
  • Parcel's photo capturing & stored
  • WMS, ERP, SAS & Cloud Integration
  • High Speed Scanning
  • Software customization supported
  • Cost effective & Local Support
  • Easy search for captured details

DWS MODELWISE INFORMATION CHART

Objection Shapes Cuboid, Irregular
Maximum Object Size (L*W*H) 700*700*700 mm
Minimum Object Size (L*W*H) 50*50*10 mm
Dimensional Accuracy ± 10 mm
Weighing minimum Range 50 Gm
Weighing maximum Range 200 Kg
Weighing Accuracy 50 gm
Scanning speed 900 to 1200 Per Hour
Object Position To Reference Center
Surface Characteristics MS IS 2062 with Powder Coating
Speed of Measurement 3 Sec Per Weighment
Barcode Scanning USB Port for Scanner / Bluethooth
Display 15.6” (1366 * 768 Resolution)
Platform Size 700*700 MM
Memory Upto 10 Lakh Data Storage Capacity with Auto Delete

Operating Conditions

Input Power Supply 230 V SOH2 with inbuilt SMPS 12V / 4A

Computer Hardware Specification

NUC BOXNUC8I3BEH Core i3 8th Gen 3.0 GHz 4MB cache RAM 8 GB HDD 500 GB
Sensor Ultrasonic sensor
Micro USB 1.5 mtr
Camera HD Camera
Monitor VGA cable with 1.5 mtr USB powered / Power cable with 1.5 mtr with wall mount Stand
USB Hub Ultra High speed
Load Cell with Reader Load Cell capacity 300 Kg
WiFi KeyBoard & Mouse With Batteries / Cell
Black/Blue Dry mat 225*125 CM / L*B
Barcode Scanner (Not in package) 1D / 2D
Tubelight 10 Watt, 2 mtr wire with power pin

Communication

Computer Interface Ethernet, Bluetooh, USB & Wi-Fi
Data Capture         Web Server Facility, Weight Dimension (L/W/H), Barcode & SQL

DWS ADVANTAGES

  • Realtime product imaging
  • Improved accuracy of shipping cost
  • Improve operational efficiency
  • Future capacity planning
  • Measurement of regular and irregular shaped freight / objects
  • Live image capturing of freight / objects
  • Data transfer (Pdf / CSV)
  • Cloud based systems provided for monitoring data
  • Higher dimensioning rates in average by also measuring irregular shaped objects
  • Barcode, Volume and Weight - All in one
  • System integration with WMS
  • Software customization support
  • Cost effective & Local Support

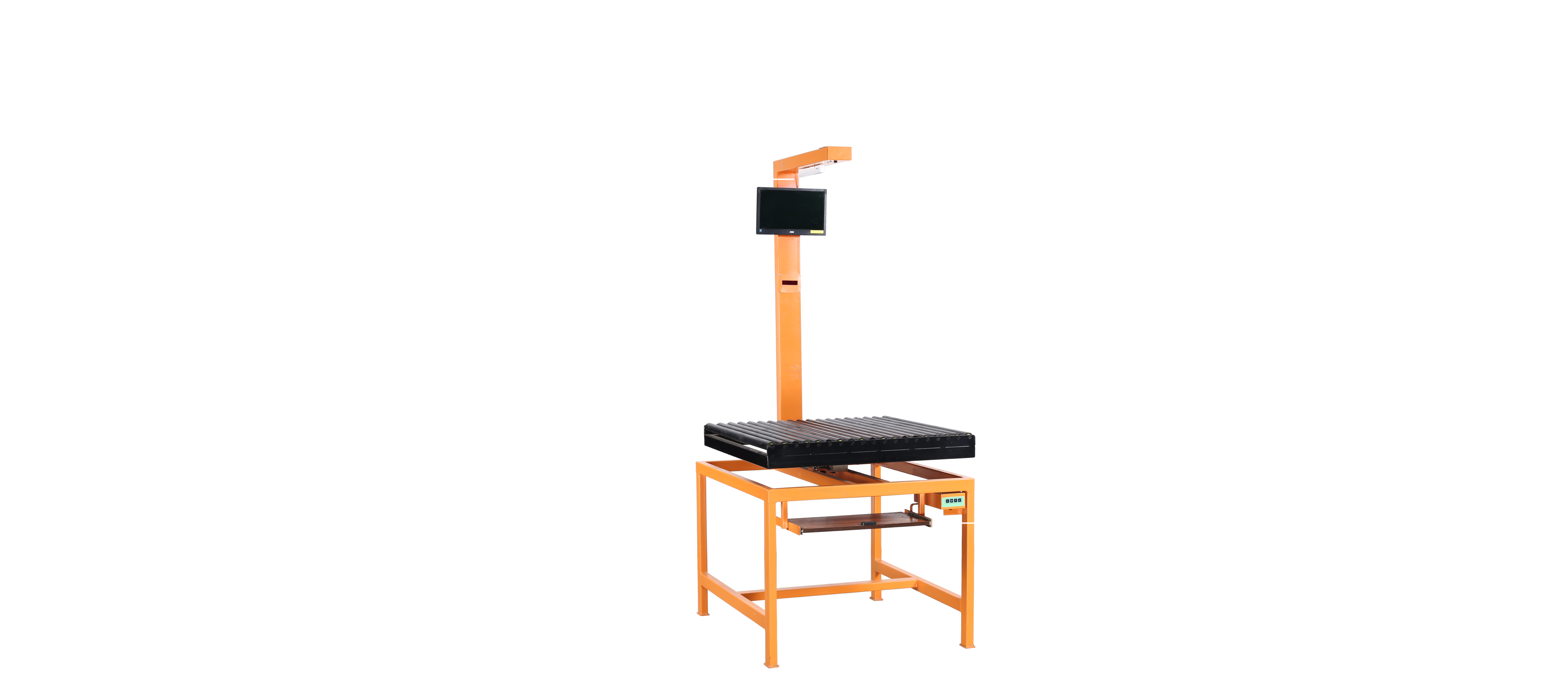

DWS STRUCTURE

Accessories

  • HD Camera
  • Bluetooth Scanner
  • Bluetooth Keyboard & Mouse

Features

  • Super fast measuring time
  • Integrated with camera, 1D / 2D barcode printer & scanner (Not included in package)
  • Quick Calibration
  • Versatile software feature
  • Customizable interface and data transfer via Ethernet, USB or Wi-Fi
  • 10 lakh transactions can be saved with images

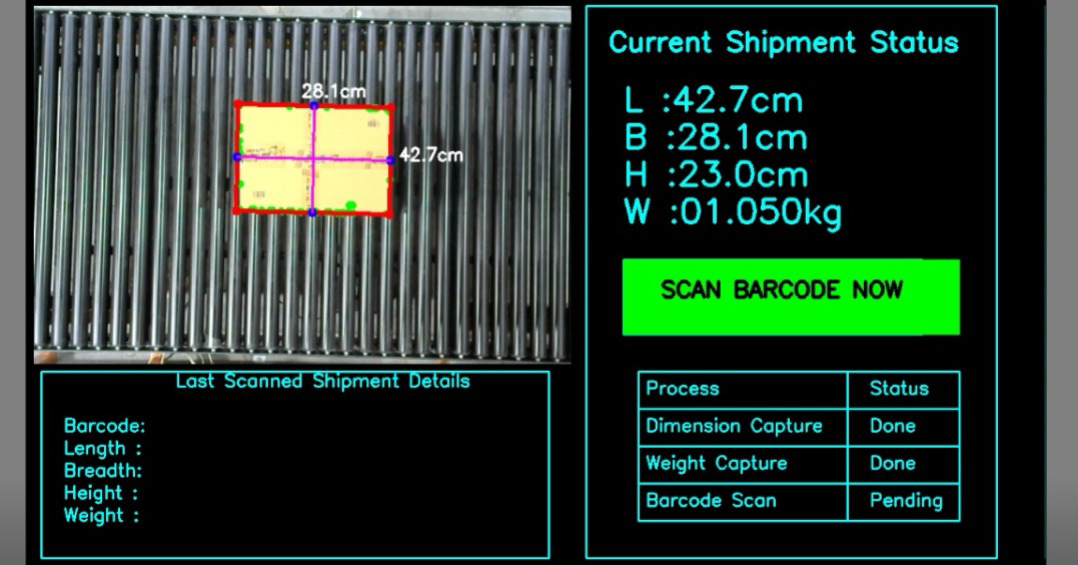

INTELLIBEES DWS SOFTWARE

  • IntelliBees Software with user friendly interface to gather, validate & transfer data to systems & databases.
  • Direct interface with systems like WMS, Inward, Rack In, Outward & other systems.
  • Capture images with dimensions & Barcode information.
  • Data transfer on realtime / FTP basis.
  • Centralized repository.
  • Login based portal for users.
  • Can view data captured on DWS machines in realtime.
  • DWS information like L*B*H is available with weight also time and photo of product is available to view on dashboard.
  • Shipment ID / AWB No. based search, also custom search is available to filter and list products, location and machine wise data available too for troubleshooting.
